Cellular Respiration Diagram Worksheet

Cellular respiration is a complex process that happens in every living cell. If you're an educator looking to provide your students with a visual aid to understand this vital process, a cellular respiration diagram worksheet might be just what you need. This worksheet will help your students understand the various entities and subjects involved in cellular respiration in a clear and concise manner.

  Cellular Respiration Diagram Worksheet Blank

---

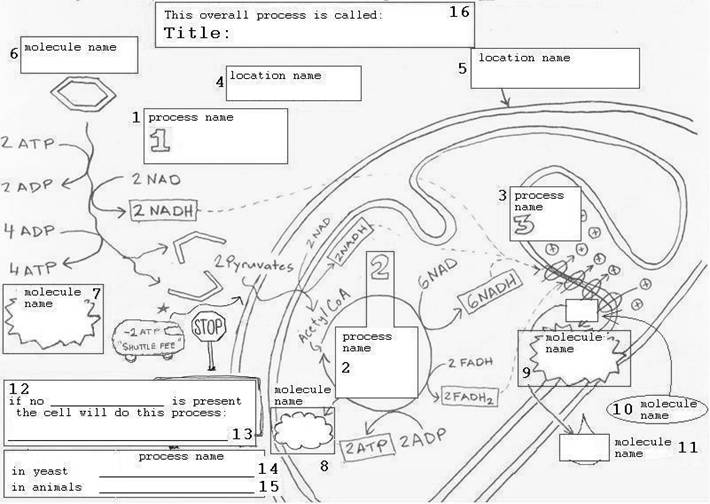

  Cellular Respiration Flow Chart Worksheet

---

  Photosynthesis and Cellular Respiration Concept Map

---

  Comparing Photosynthesis and Cellular Respiration Diagram

---

  Compare Photosynthesis and Cellular Respiration

---

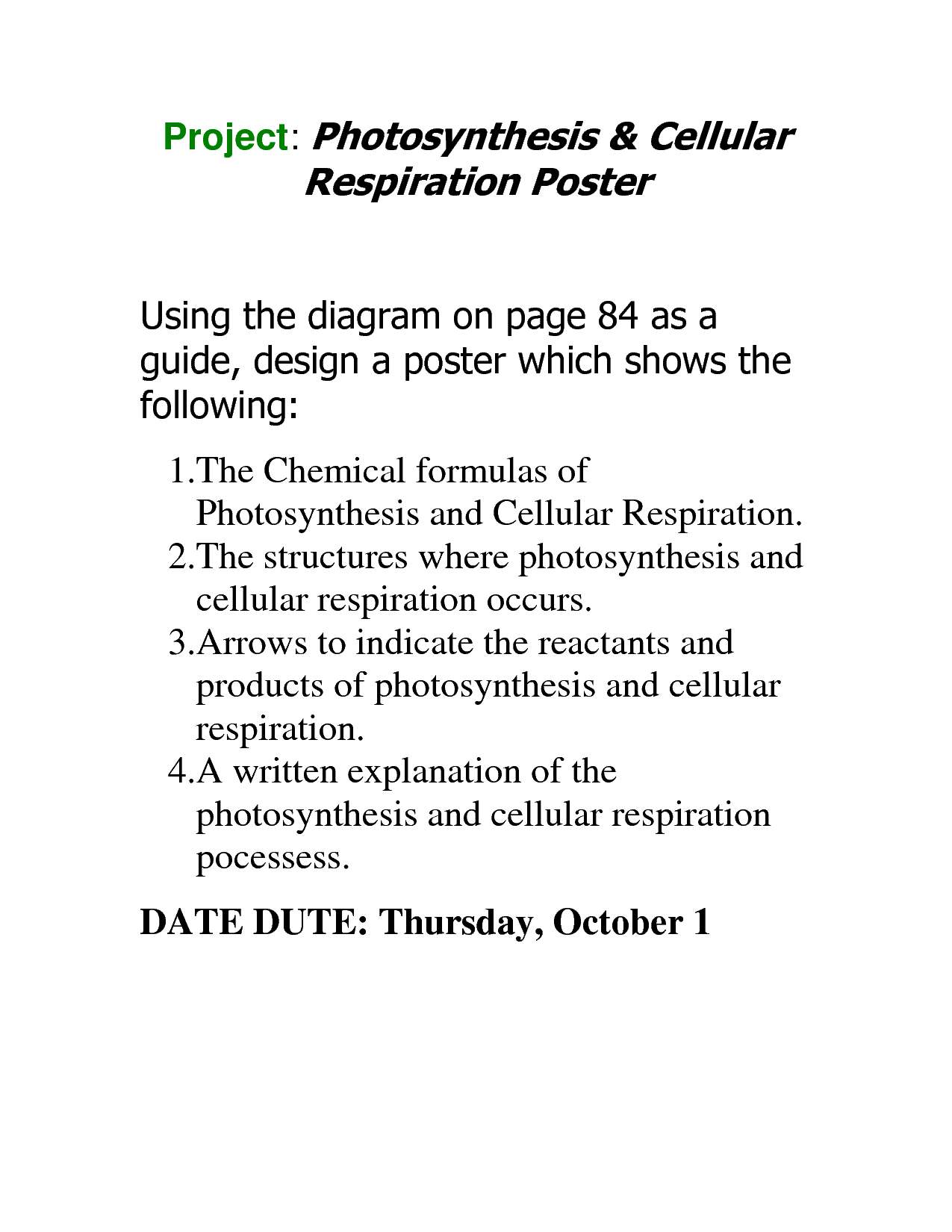

  Photosynthesis and Cellular Respiration Project

---

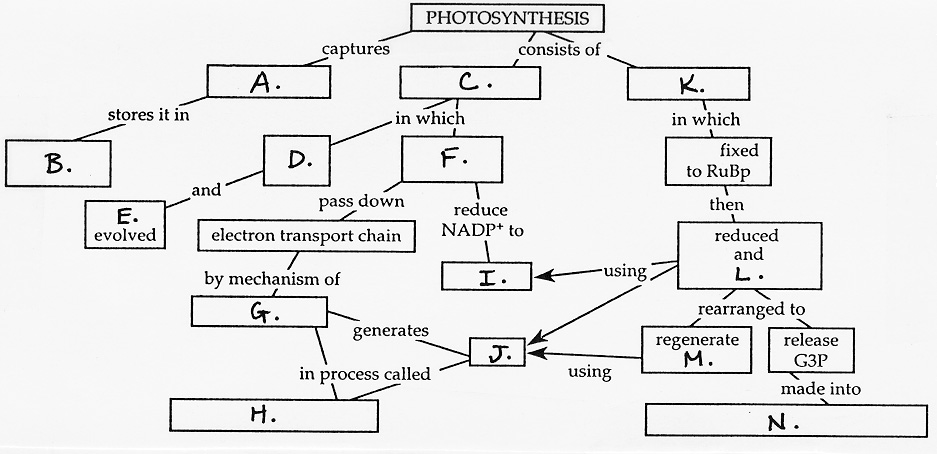

  Photosynthesis and Respiration in Plants Concept Map

---

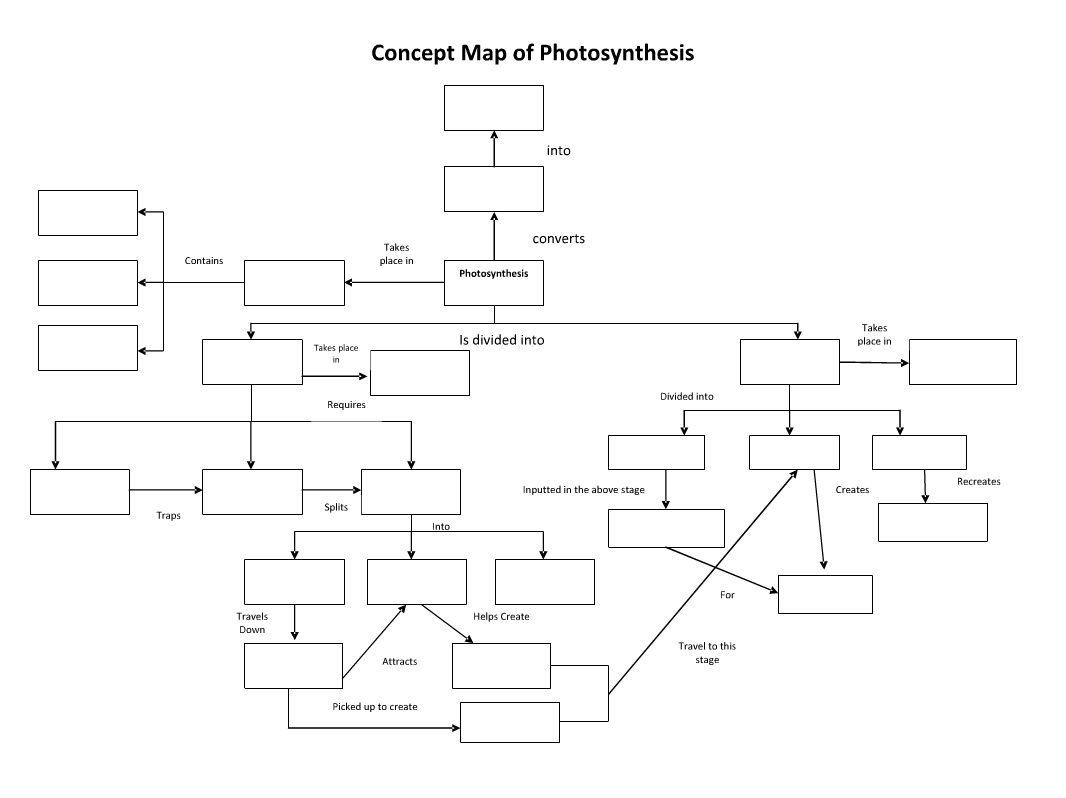

  Photosynthesis and Cellular Respiration Concept Map

---

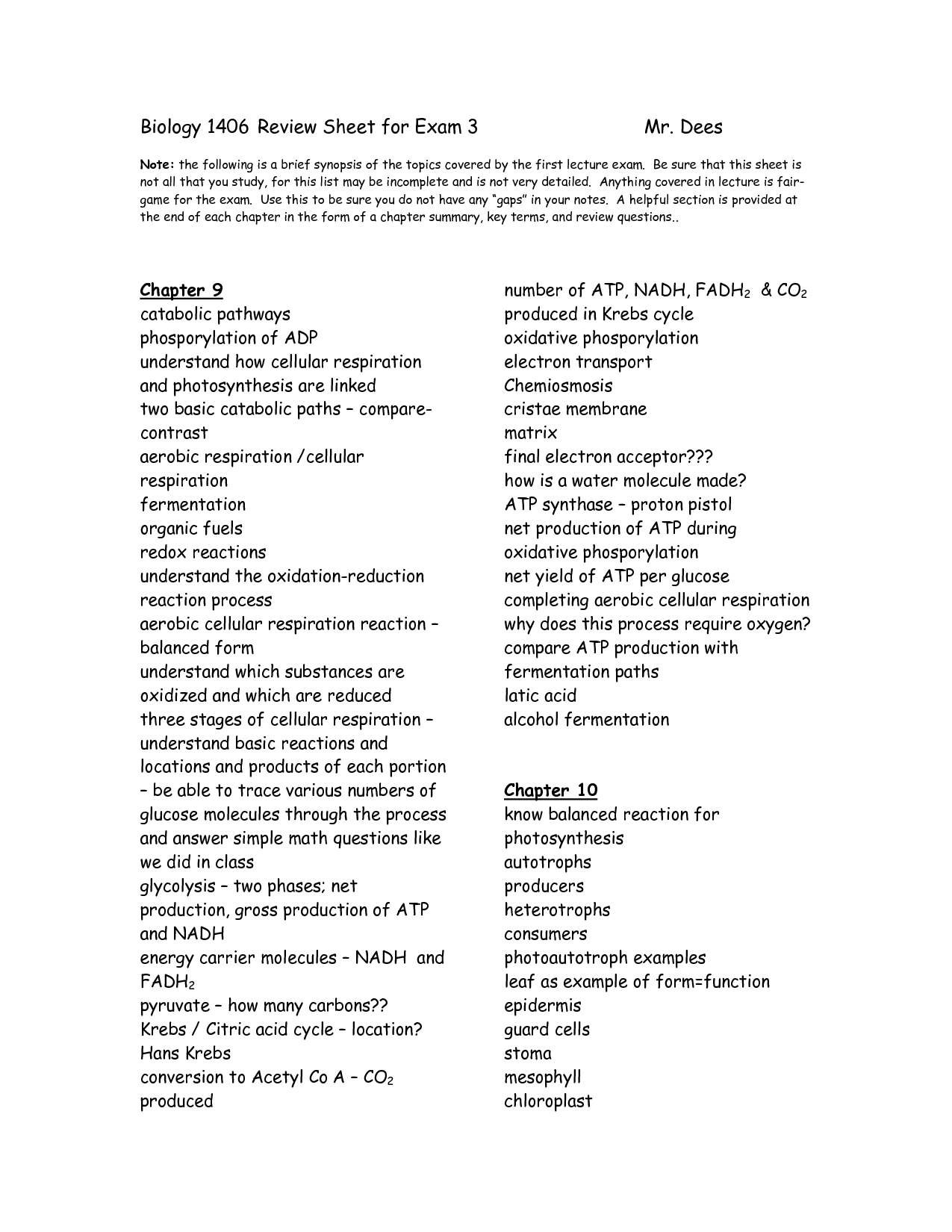

  Photosynthesis Diagrams Worksheet Answer Key

---

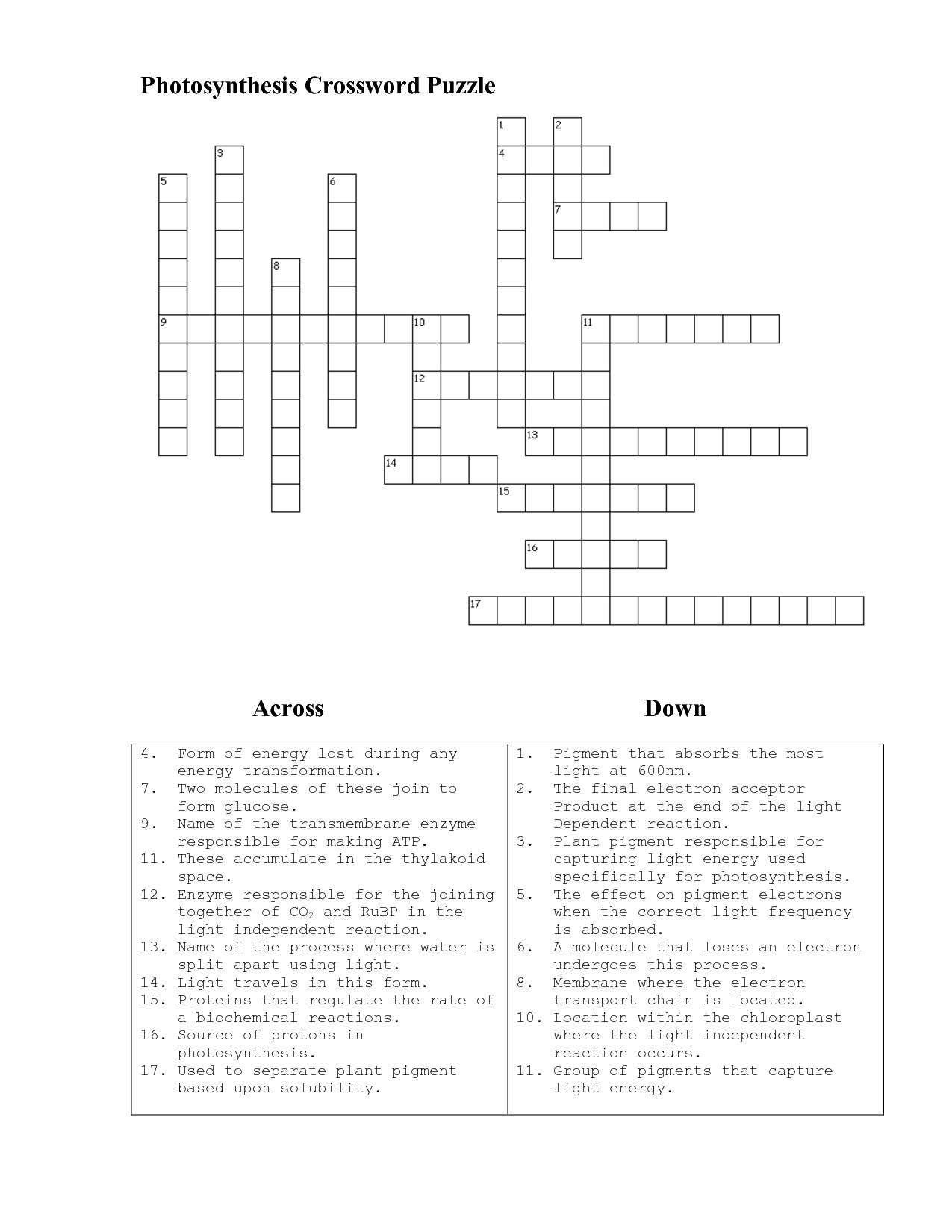

  Photosynthesis Crossword Puzzle Answers

---

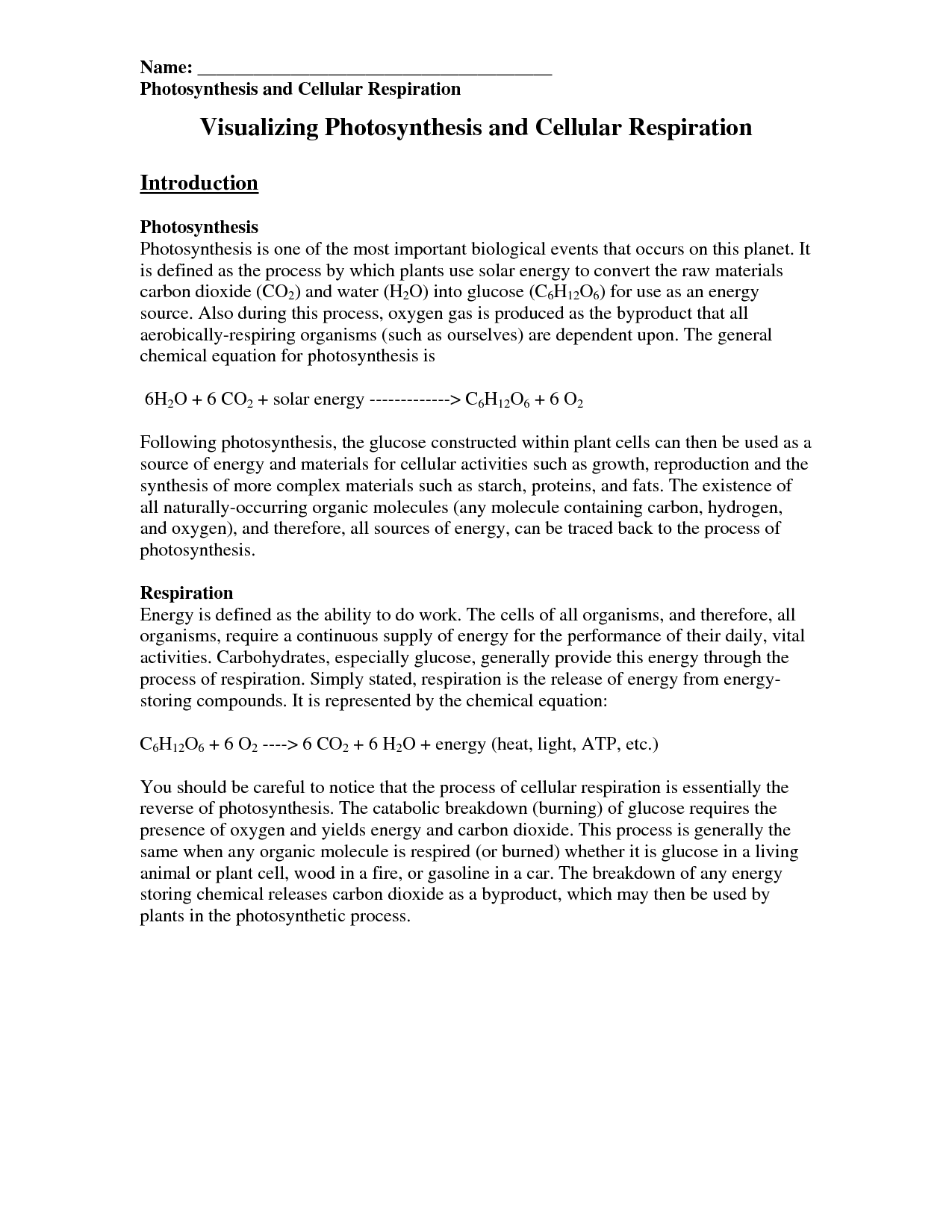

  Photosynthesis and Cellular Respiration Worksheet Answers

---

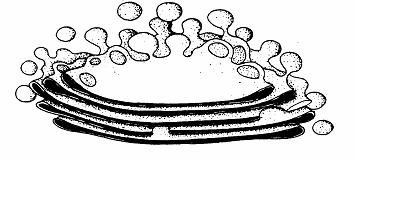

  Black and White Animal Cell Golgi Body

---

  3 Venn Diagram Template

---

  Cell Processes Worksheet

---

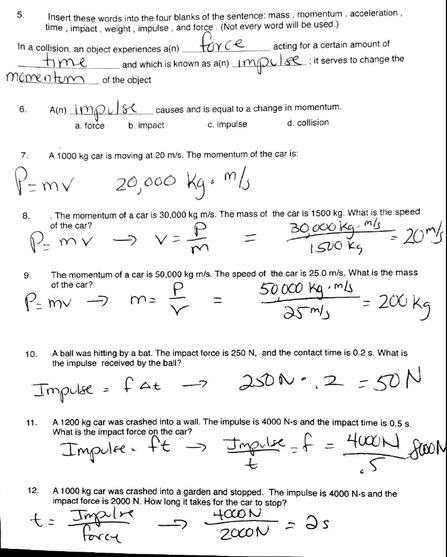

  Impulse-Momentum Worksheet with Answer Key

---

  Impulse-Momentum Worksheet with Answer Key

---

  Impulse-Momentum Worksheet with Answer Key

---

What is the primary source of energy that is broken down during cellular respiration?

The primary source of energy that is broken down during cellular respiration is glucose. Glucose, a type of sugar, is the main fuel used by cells to produce adenosine triphosphate (ATP), the energy currency of the cell. Through a series of metabolic pathways, glucose is oxidized in the presence of oxygen to release the energy stored in its chemical bonds, ultimately generating ATP that powers cellular processes.

Where does cellular respiration occur within a cell?

Cellular respiration occurs in the mitochondria of a cell. The mitochondria are often referred to as the "powerhouses" of the cell because they are responsible for producing energy in the form of ATP through the process of cellular respiration.

What are the three main stages of cellular respiration?

The three main stages of cellular respiration are glycolysis, the citric acid cycle (or Krebs cycle), and oxidative phosphorylation (or electron transport chain). Glycolysis breaks down glucose into pyruvate, which enters the citric acid cycle to produce more energy molecules. Finally, oxidative phosphorylation uses these energy molecules to generate a large amount of ATP, the cell's primary energy source.

What happens during glycolysis and where does it occur?

During glycolysis, a series of enzymatic reactions break down one molecule of glucose into two molecules of pyruvate. This process occurs in the cytoplasm of cells and is the first step in cellular respiration, leading to the production of ATP for energy metabolism.

Describe the process and location of pyruvate oxidation.

Pyruvate oxidation occurs in the mitochondrial matrix of eukaryotic cells. The process involves the conversion of pyruvate, a product of glycolysis, into acetyl CoA. The pyruvate molecule is transported from the cytoplasm into the mitochondria where it undergoes decarboxylation by the enzyme pyruvate dehydrogenase complex. This reaction releases a molecule of CO2 and generates acetyl CoA, which is a key substrate for the citric acid cycle. Pyruvate oxidation is an important step in cellular respiration as it links glycolysis to the citric acid cycle, ultimately leading to the production of ATP.

What is the importance of the Krebs cycle and where does it take place?

The Krebs cycle, also known as the citric acid cycle or tricarboxylic acid cycle, is a central metabolic pathway in cells that plays a crucial role in the breakdown of carbohydrates, fats, and proteins to generate energy in the form of ATP. It takes place in the mitochondria of eukaryotic cells and in the cytoplasm of prokaryotic cells. The cycle produces important molecules such as NADH and FADH2, which are essential for the electron transport chain to generate more ATP. Overall, the Krebs cycle is vital for cellular respiration and energy production in organisms.

Explain the role of the electron transport chain in cellular respiration.

The electron transport chain is a series of protein complexes and molecules located in the inner mitochondrial membrane that plays a crucial role in cellular respiration. During this process, high-energy electrons from the electron carriers NADH and FADH2 are passed along the chain, releasing energy that is used to pump protons across the membrane to create an electrochemical gradient. This gradient drives the synthesis of ATP through oxidative phosphorylation, producing a large amount of energy for the cell. Ultimately, the electron transport chain is responsible for the majority of ATP production in aerobic respiration, making it essential for the cell's energy metabolism.

What is the final electron acceptor in the electron transport chain?

The final electron acceptor in the electron transport chain is oxygen. It receives electrons and protons from the chain to form water in the last step of aerobic respiration.

How is ATP generated during cellular respiration?

ATP is generated during cellular respiration through a series of metabolic pathways, with the majority of ATP produced in the electron transport chain. This process involves the transfer of electrons from molecules like NADH and FADH2 to protein complexes in the inner mitochondrial membrane, creating a proton gradient across the membrane. This gradient drives the synthesis of ATP by ATP synthase, a complex enzyme that converts ADP and inorganic phosphate into ATP. Ultimately, cellular respiration results in the production of ATP as an energy currency for various cellular processes.

What are some waste products produced during cellular respiration?

The waste products produced during cellular respiration include carbon dioxide (CO2) and water (H2O). In aerobic respiration, which occurs in the presence of oxygen, carbon dioxide is released as a byproduct of the breakdown of glucose for energy. Similarly, water is formed as a result of the electron transport chain in the mitochondria. These waste products are then expelled from the body during exhaling and urination.
