Understanding Ohm's Law is essential for anyone studying or working in the field of electrical engineering. This worksheet provides a practical way to reinforce the concepts and calculations involved in Ohm's Law. By offering a series of questions that focus on the relationship between voltage, current, and resistance, this worksheet is ideal for students and professionals seeking to enhance their comprehension and application of this fundamental principle.



Table of Images 👆

  1. Ohms Law Practice Worksheet
  2. Ohms Law Series and Parallel Circuits
  3. Ohms Law Worksheets Simple
  4. Parallel Circuit Problem Worksheet
  5. Ohms Law Worksheets with Answers
  6. Charles and Boyles Law Worksheet Answers
  7. Ohms Law Worksheet Answers
  8. Power and Ohms Law Problems
  9. Ohms Law Triangle
  10. Electricity Activity Worksheet
  11. Ohms Law Calculator
  12. Incandescent Light Bulb Voltage Current Graph
  13. Electrical Formulas Worksheet

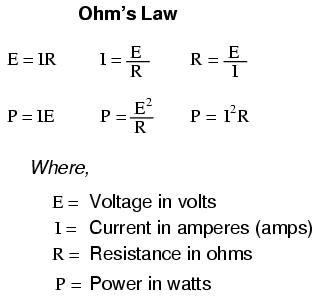

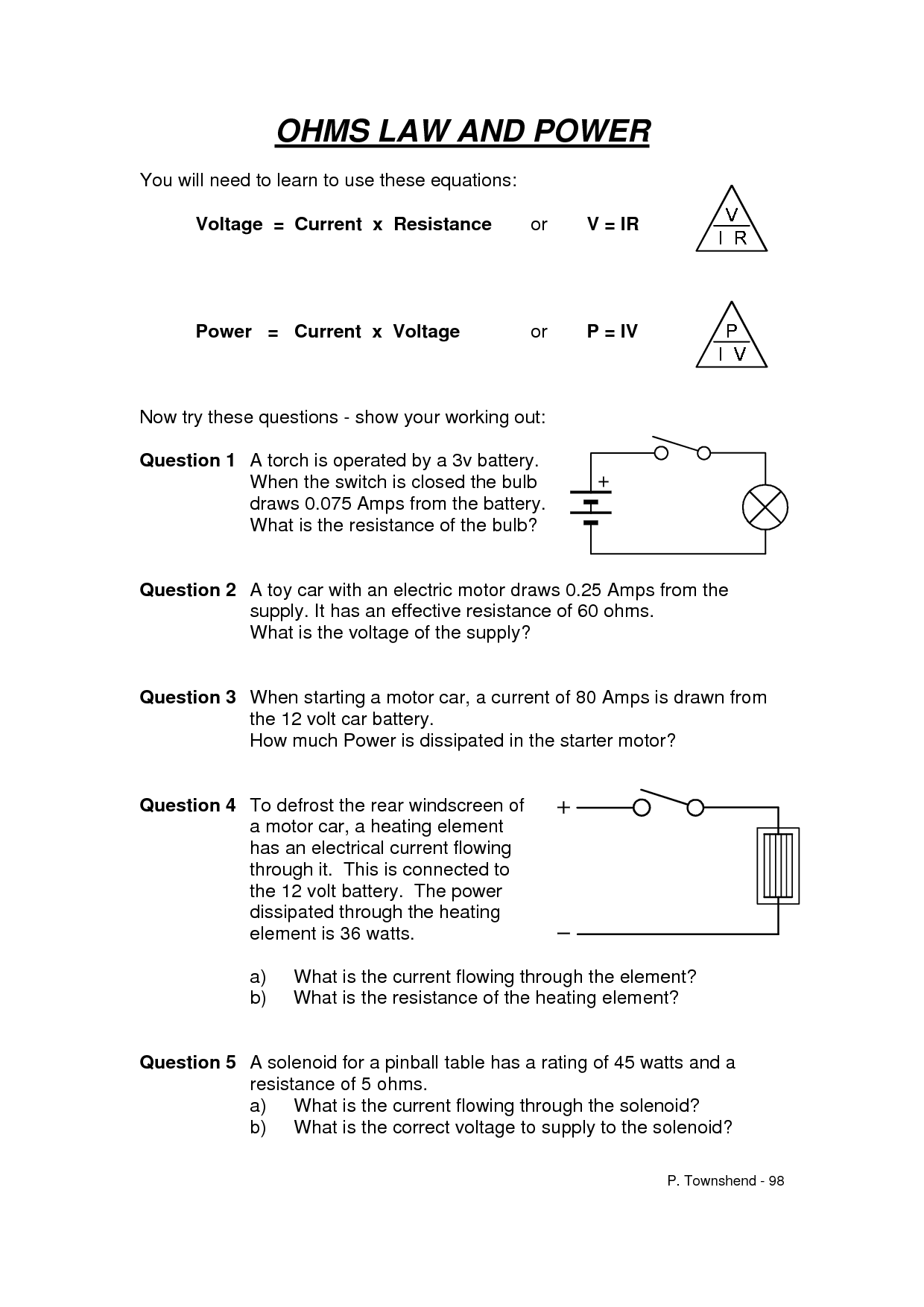

Ohms Law Practice Worksheet
Pin It!   Ohms Law Practice WorksheetdownloadDownload PDF

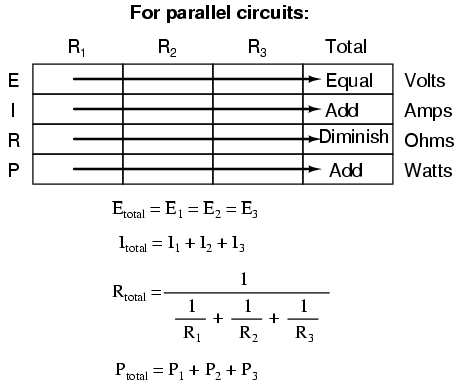

Ohms Law Series and Parallel Circuits
Pin It!   Ohms Law Series and Parallel CircuitsdownloadDownload PDF

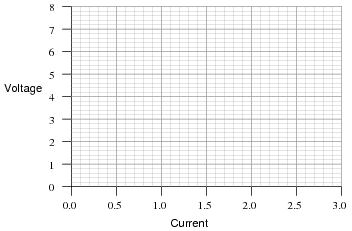

Ohms Law Worksheets Simple
Pin It!   Ohms Law Worksheets SimpledownloadDownload PDF

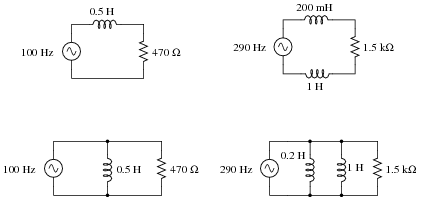

Parallel Circuit Problem Worksheet
Pin It!   Parallel Circuit Problem WorksheetdownloadDownload PDF

Ohms Law Worksheets with Answers
Pin It!   Ohms Law Worksheets with AnswersdownloadDownload PDF

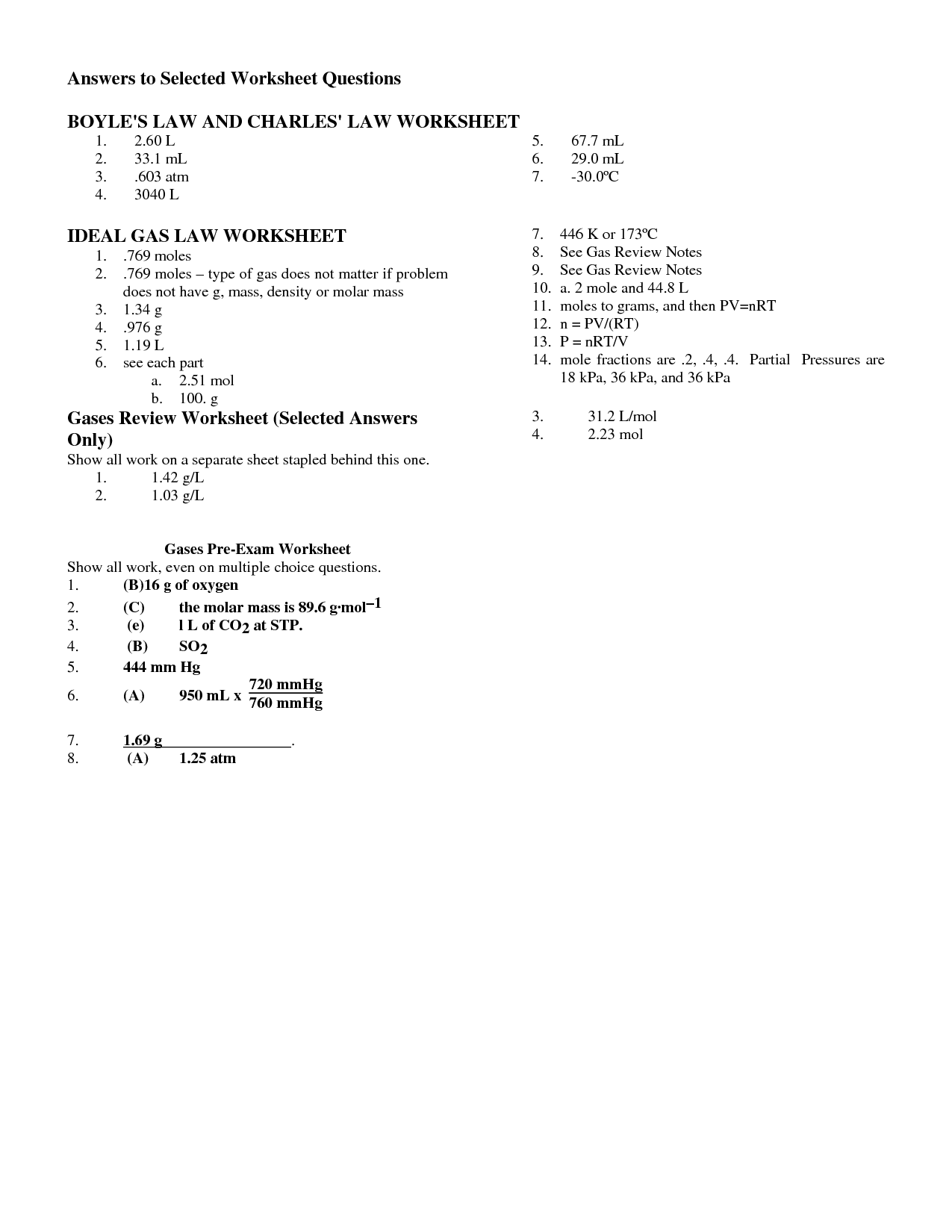

Charles and Boyles Law Worksheet Answers
Pin It!   Charles and Boyles Law Worksheet AnswersdownloadDownload PDF

Ohms Law Worksheet Answers
Pin It!   Ohms Law Worksheet AnswersdownloadDownload PDF

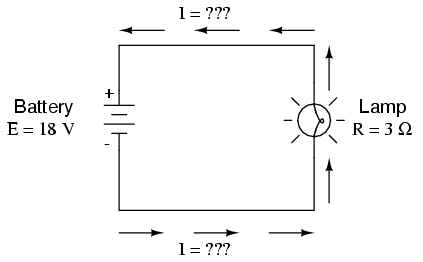

Power and Ohms Law Problems
Pin It!   Power and Ohms Law ProblemsdownloadDownload PDF

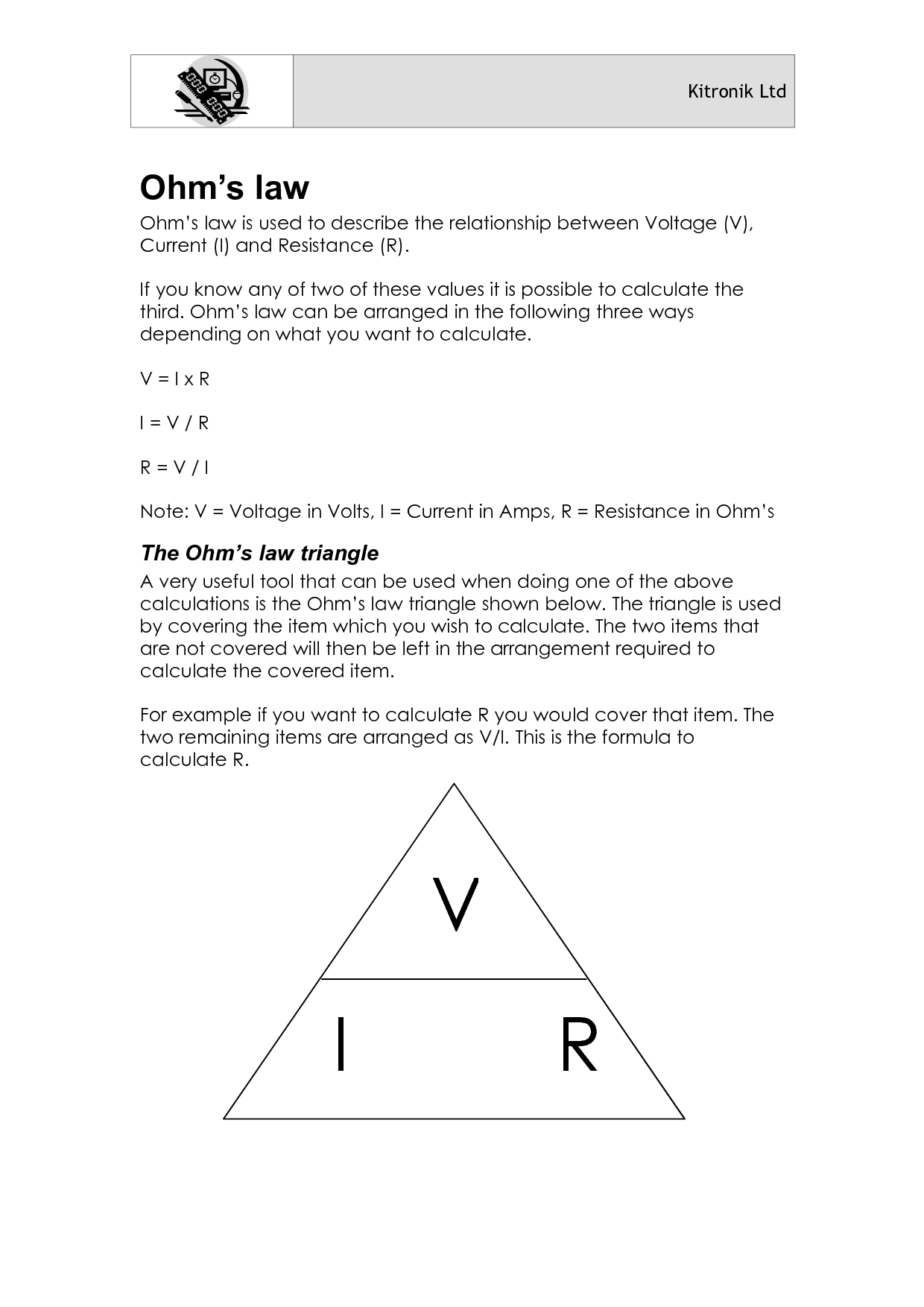

Ohms Law Triangle
Pin It!   Ohms Law TriangledownloadDownload PDF

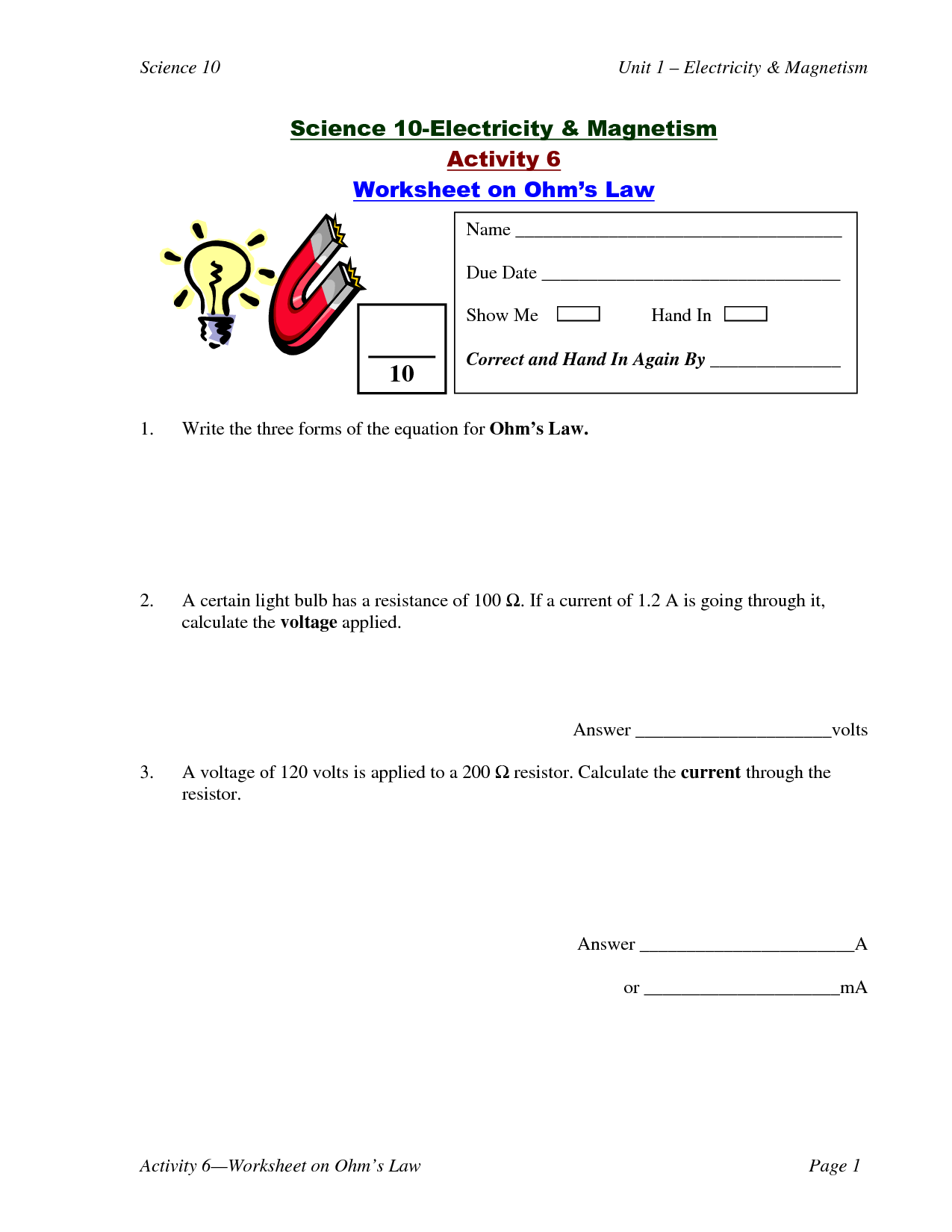

Electricity Activity Worksheet
Pin It!   Electricity Activity WorksheetdownloadDownload PDF

Ohms Law Calculator
Pin It!   Ohms Law CalculatordownloadDownload PDF

Incandescent Light Bulb Voltage Current Graph
Pin It!   Incandescent Light Bulb Voltage Current GraphdownloadDownload PDF

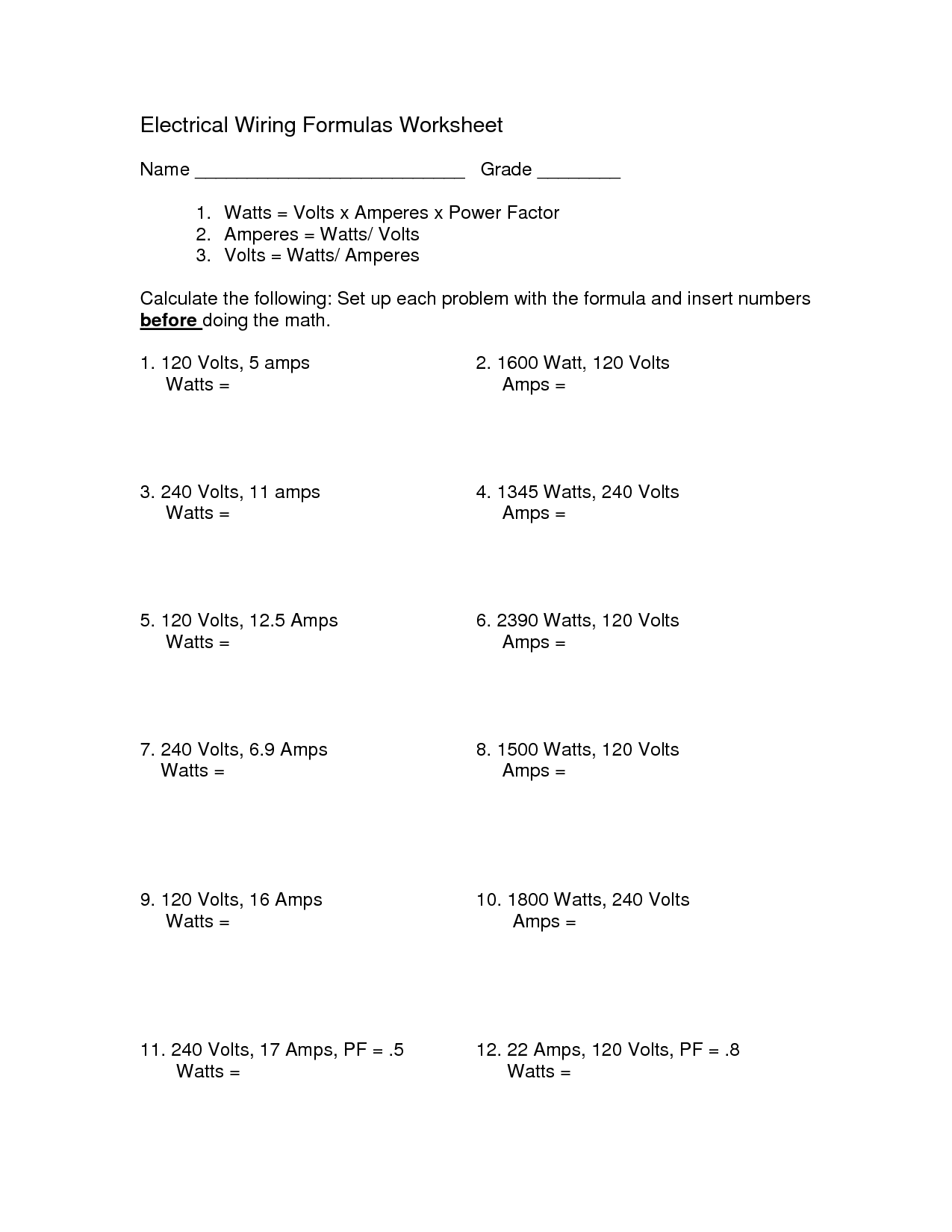

Electrical Formulas Worksheet
Pin It!   Electrical Formulas WorksheetdownloadDownload PDF

Ohms Law Worksheet Answers
Pin It!   Ohms Law Worksheet AnswersdownloadDownload PDF

Ohms Law Worksheets with Answers
Pin It!   Ohms Law Worksheets with AnswersdownloadDownload PDF


What is Ohm's Law?

Ohm's Law states that the current flowing through a conductor between two points is directly proportional to the voltage across the two points, and inversely proportional to the resistance of the conductor. Mathematically, it can be expressed as I = V/R, where I is the current, V is the voltage, and R is the resistance.

What are the three components of Ohm's Law?

Ohm's Law states that the current passing through a conductor is directly proportional to the voltage applied across it and inversely proportional to the resistance of the conductor. Therefore, the three components of Ohm's Law are current (I), voltage (V), and resistance (R), which can be mathematically represented as V = I x R.

How is voltage defined in Ohm's Law?

In Ohm's Law, voltage is defined as the potential difference or electrical pressure between two points in a circuit. It is denoted by the symbol V and is measured in volts (V). Voltage is directly proportional to current (I) and resistance (R) in a circuit, as stated in the formula V = I * R.

How is current defined in Ohm's Law?

In Ohm's Law, current (I) is defined as the flow of electric charge per unit of time, measured in amperes (A). It is directly proportional to the voltage (V) applied across a circuit and inversely proportional to the resistance (R) of the circuit, as stated by the formula I = V/R.

How is resistance defined in Ohm's Law?

Resistance is defined in Ohm's Law as the opposition that a material offers to the flow of electric current. The value of resistance (R) in an electrical circuit determines how much current will flow through it when a voltage (V) is applied, according to the equation V=IR, where I is the current flowing through the circuit.

If the voltage across a resistor is 12 volts and the resistance is 4 ohms, what is the current flowing through the resistor?

To calculate the current flowing through the resistor, you can use Ohm's Law, which states that current (I) is equal to voltage (V) divided by resistance (R), so I = V / R. In this case, the voltage is 12 volts and the resistance is 4 ohms, so the current flowing through the resistor is I = 12 volts / 4 ohms = 3 amperes. Thus, the current flowing through the resistor is 3 amperes.

If the current through a wire is 2 amperes and the resistance is 8 ohms, what is the voltage across the wire?

The voltage across the wire can be calculated using Ohm's Law, which states that Voltage (V) = Current (I) x Resistance (R). Substituting the given values (V = 2 amperes x 8 ohms), the voltage across the wire is 16 volts.

If the voltage across a circuit is 24 volts and the current flowing through it is 3 amperes, what is the resistance of the circuit?

The resistance of the circuit can be calculated using Ohm's Law, which states that resistance (R) is equal to voltage (V) divided by current (I). Therefore, the resistance of the circuit is 8 ohms (R = V/I = 24V/3A = 8 ohms).

How does increasing the voltage affect the current in a circuit?

Increasing the voltage in a circuit will generally result in an increase in the current. This is because the relationship between voltage, current, and resistance is described by Ohm's Law (V = IR), where V is voltage, I is current, and R is resistance. When voltage increases, assuming the resistance remains constant, the current will also increase proportionally to maintain the balance between the three variables as per Ohm's Law.

How does increasing the resistance affect the current in a circuit?

Increasing the resistance in a circuit will decrease the current flowing through it, following Ohm's Law (I = V/R) where current (I) is inversely proportional to resistance (R) for a constant voltage (V). This means that as resistance increases, the current will decrease, resulting in less flow of electrical charge through the circuit.
