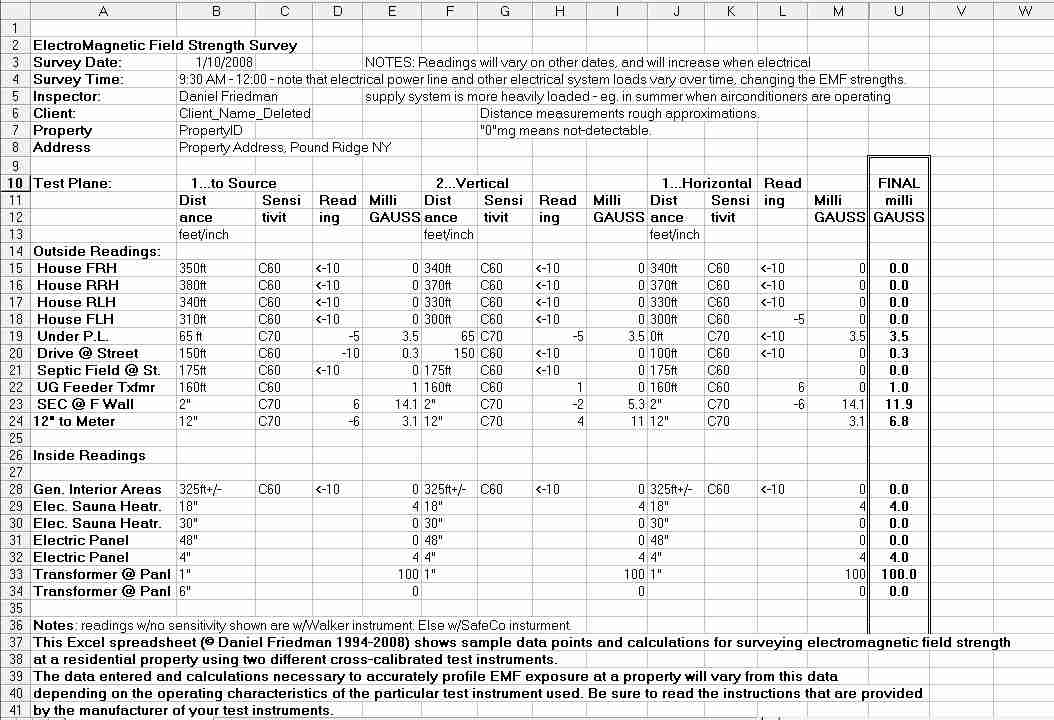

Examples of Measurement Worksheet
Pin It!   Examples of Measurement WorksheetdownloadDownload PDF

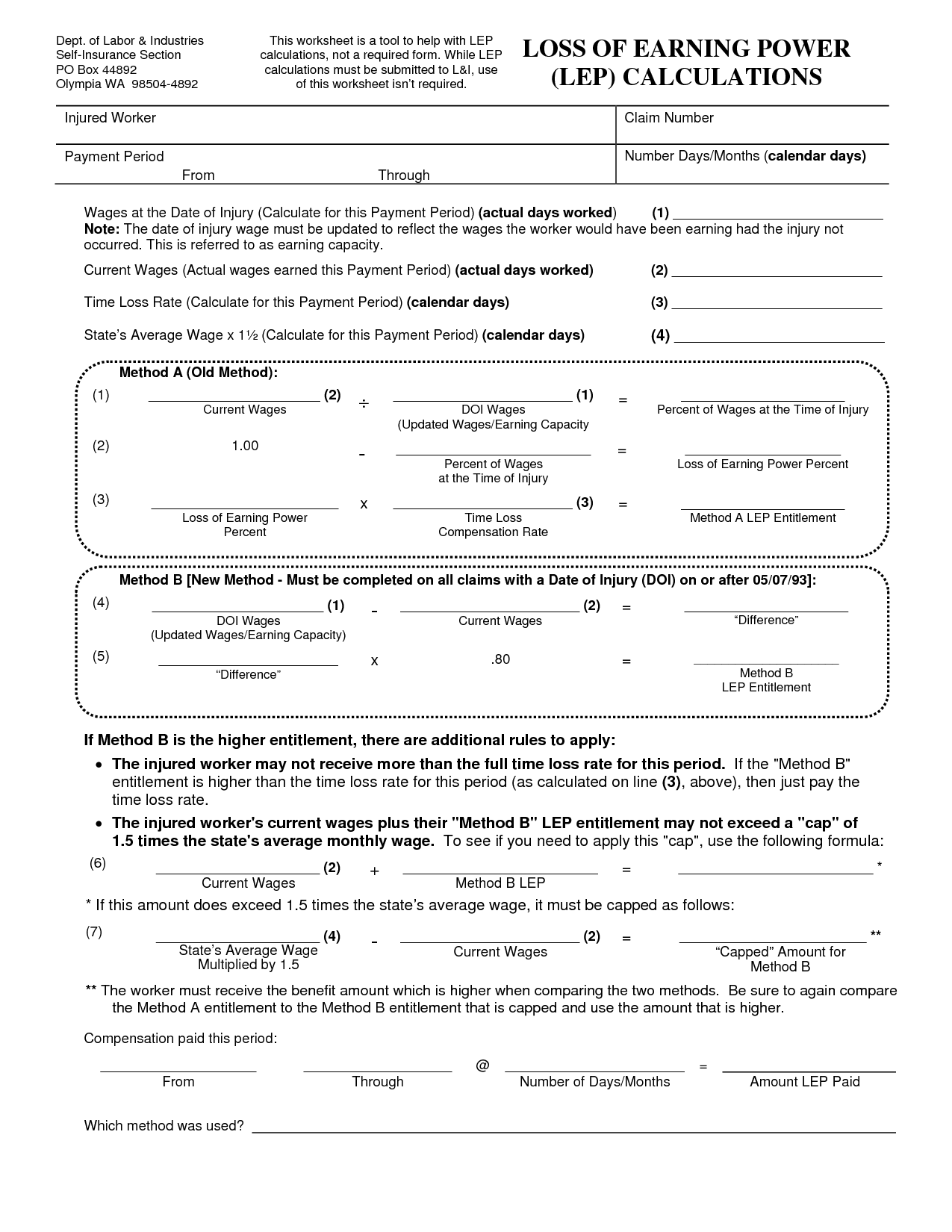

Grief and Loss Worksheets
Pin It!   Grief and Loss WorksheetsdownloadDownload PDF

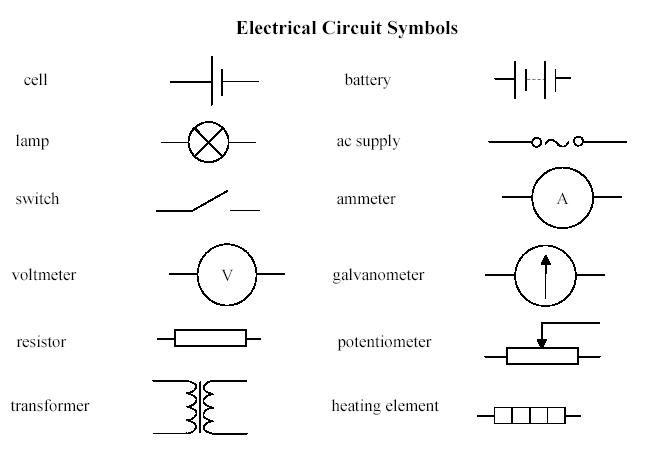

Electrical Circuit Symbols
Pin It!   Electrical Circuit SymbolsdownloadDownload PDF

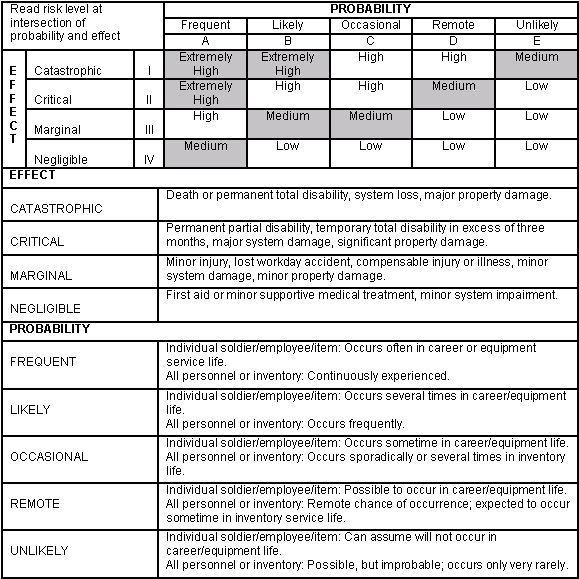

Army Risk Assessment Matrix
Pin It!   Army Risk Assessment MatrixdownloadDownload PDF

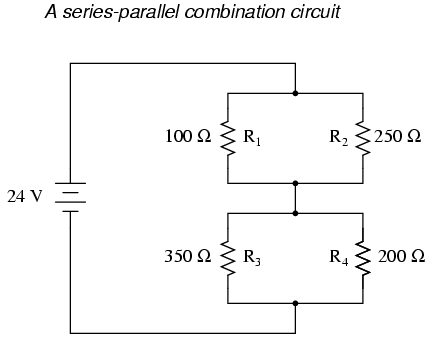

Series and Parallel Circuits Examples
Pin It!   Series and Parallel Circuits ExamplesdownloadDownload PDF

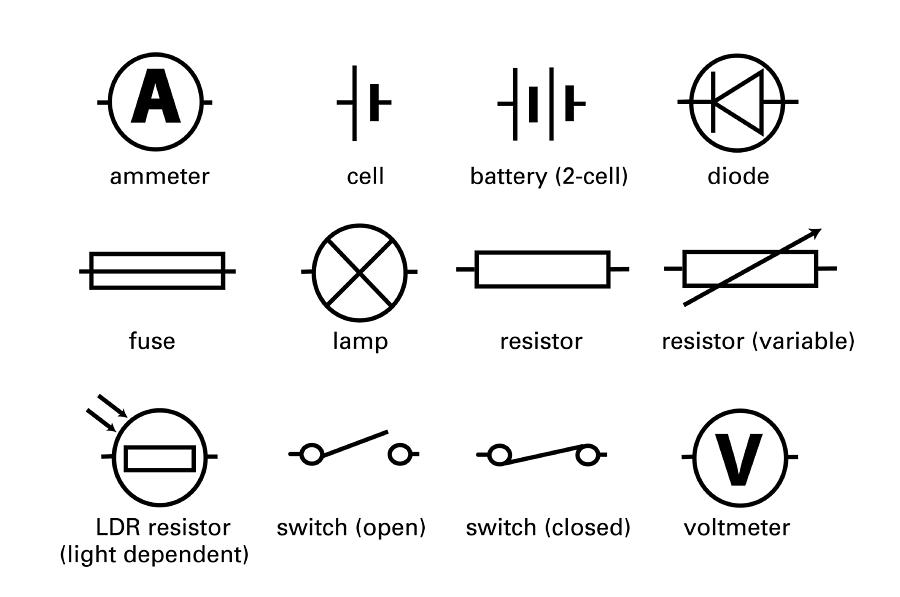

Electrical Circuit Symbols
Pin It!   Electrical Circuit SymbolsdownloadDownload PDF

Electrical Circuit Symbols
Pin It!   Electrical Circuit SymbolsdownloadDownload PDF

Mechanical Energy Transformation Examples
Pin It!   Mechanical Energy Transformation ExamplesdownloadDownload PDF

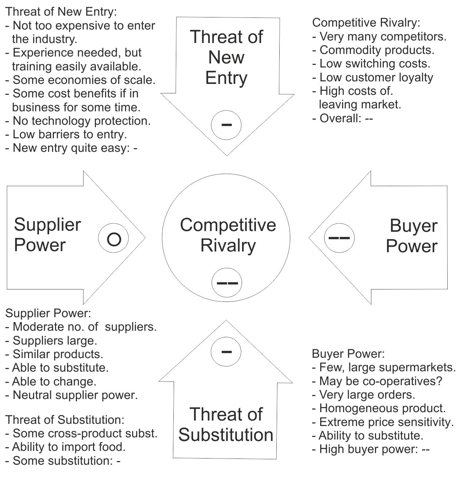

Porters Five Forces Analysis
Pin It!   Porters Five Forces AnalysisdownloadDownload PDF

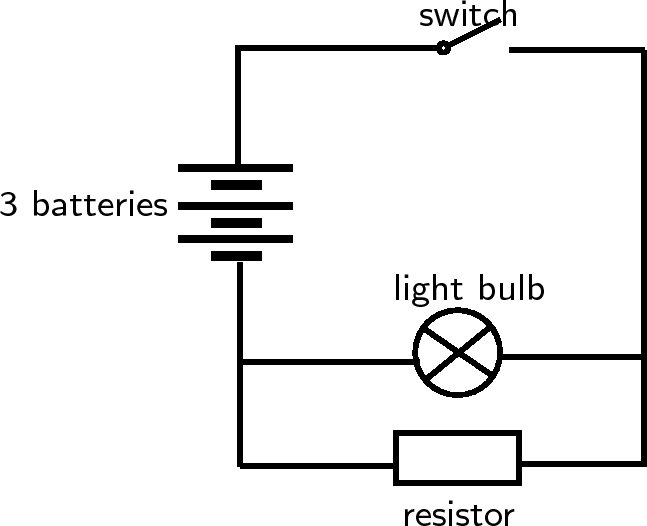

Resistors Series Circuit 2 Battery Switch
Pin It!   Resistors Series Circuit 2 Battery SwitchdownloadDownload PDF

Resistors Series Circuit 2 Battery Switch
Pin It!   Resistors Series Circuit 2 Battery SwitchdownloadDownload PDF

Resistors Series Circuit 2 Battery Switch
Pin It!   Resistors Series Circuit 2 Battery SwitchdownloadDownload PDF


What is electrical power?

Electrical power is the rate at which electrical energy is transferred by an electric circuit. It is measured in watts and is the product of voltage (measured in volts) and current (measured in amperes) in the circuit. Electrical power is what allows electrical devices to operate by providing the necessary energy to perform tasks such as heating, lighting, or moving machinery.

How is electrical power measured?

Electrical power is measured in units called watts (W), which represent the rate at which energy is transferred by an electric circuit. Power can be calculated by multiplying the voltage (V) in volts by the current (I) in amperes flowing through the circuit, using the formula P (power) = V (voltage) x I (current). Other common units used to measure power include kilowatts (kW) and megawatts (MW) for larger electrical systems.

What are the units used to express electrical power?

The units used to express electrical power are watts (W) and kilowatts (kW) for smaller amounts of power, and megawatts (MW) or gigawatts (GW) for larger amounts of power.

How is electrical power calculated in a DC circuit?

Electrical power in a DC circuit is calculated by multiplying the voltage across the circuit (V) by the current flowing through it (I). This calculation is expressed by the formula P = V x I, where P represents power in watts, V represents voltage in volts, and I represents current in amperes.

How is electrical power calculated in an AC circuit?

Electrical power in an AC circuit is calculated using the formula P = VIcos(?), where P represents power in watts, V is the voltage in volts, I is the current in amperes, and ? is the phase angle difference between voltage and current. This formula takes into account both the amplitude and the phase relationship between voltage and current to determine the real power dissipated in the circuit.

What is the relationship between voltage, current, and power?

The relationship between voltage, current, and power is defined by Ohm's law, which states that the current flowing through a circuit is directly proportional to the voltage applied across it, and inversely proportional to the resistance of the circuit. Power is the product of voltage and current, and can also be calculated as the square of the voltage divided by the resistance, or the square of the current multiplied by the resistance. In summary, voltage is the driving force that pushes current through a circuit, and the product of voltage and current determines the power consumed by the circuit.

What is the difference between apparent power, true power, and reactive power?

Apparent power is the combination of both true power (which is the actual power consumed by a system to perform work, measured in watts) and reactive power (which represents the power oscillations between the load and the source, measured in volt-amperes reactive). Apparent power is measured in volt-amperes and is the vector sum of true power and reactive power in an AC circuit. True power is what is actually harnessed and used to perform work, while reactive power is necessary for the magnetic and electric fields to operate but does not perform any useful work.

How does power factor affect electrical power?

Power factor is the ratio of real power to apparent power in an electrical system. A lower power factor means that more reactive power is required to achieve the same amount of real power, leading to higher energy losses and inefficiency in the system. This can result in increased power consumption, higher electricity bills, and reduced the overall efficiency of the electrical system. Therefore, maintaining a high power factor is important to ensure the effective utilization of electrical power and optimize energy efficiency.

How is power factor calculated?

Power factor can be calculated using the formula: Power factor = Real power (kW) / Apparent power (kVA). Real power is the actual power consumed by the electrical load, while apparent power is the product of the voltage and current drawn by the load. By dividing the real power by apparent power, you can determine the power factor of the system, which gives an indication of how efficiently the electrical power is being used.

What are some ways to increase the efficiency of electrical power transmission?

Some ways to increase the efficiency of electrical power transmission include upgrading and maintaining the existing transmission infrastructure, implementing advanced technologies like high-voltage direct current (HVDC) transmission systems, investing in energy storage solutions to address variable power generation from renewable sources, optimizing routing of power lines to reduce energy losses, integrating smart grid technologies for real-time monitoring and control, and promoting energy conservation measures to reduce overall power demand.
